In recent years, with the constant innovation and development of infrared thermal imaging technology, the infrared thermal camera in electric power, railway, industrial, medical and other fields of application is more and more widely, the widely application of the intelligent robot and its combination with infrared thermal camera, is to let the application of infrared thermal camera has been greatly expanded, the infrared thermal imaging technology in power grid is checking, forest fire prevention, disaster relief, solar energy and wind power system quality inspection and maintenance, construction site measurement plays a more and more important role.

Equipped with infrared thermal camera, the patrol robot integrates image, audio and video collection and analysis, omni-directional laser scanning and thermal imaging technology and other sensors into one, enabling accurate detection of on-site conditions and abnormal alarm. Inspection robot with infrared thermal camera is mainly used in unattended substation monitoring, oil and gas fields monitoring, surveillance for warehouse and production workshop and warehouse shelves for fire and explosion prevention monitoring and preventing invasion, etc., can also be applied to the construction and wisdom park city, in the field of peaceful city and building property, the airport, high-speed and other occasions the inspection robot with infrared thermal camera can be used for night patrol, to prevent the intrusion into the area, night abnormal behavior monitoring, etc. The T-type dual-light infrared thermal camera and the dual-light explosion-proof cylinder thermal camera are widely used to carry all kinds of patrol robots, which are accurate, efficient and reliable in temperature measurement.

Infrared thermal camera can receive the thermal radiation emitted by the object itself, convert it into infrared temperature information, and conduct imaging processing of the temperature of the measured object, which can provide more information than the visible light camera. Unmanned aerial vehicle (UAV) equipped with infrared thermal camera can play the role of uav aerial photography to the maximum. For example, in the aspect of power grid patrol inspection, the robot equipped with infrared thermal camera can ignore the harsh terrain and haze weather, detect the working status of outdoor power grid power tower and other large equipment in real time, and find hidden trouble in time.

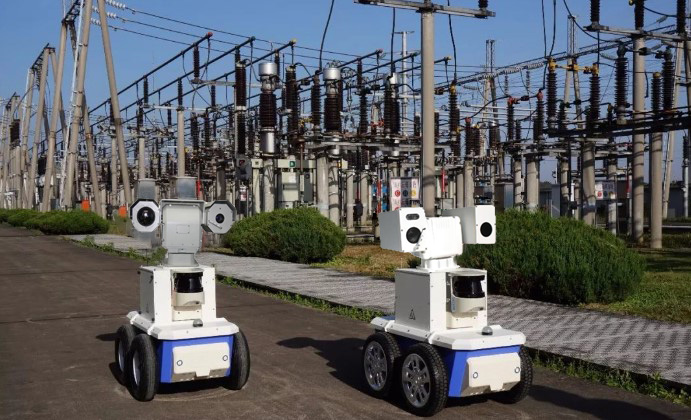

The robot is equipped with thermal camera to help power grid patrol

Electricity is mainly used for outdoor substation inspection robot, portable infrared thermal camera, visible light CCD and other plant equipment related testing equipment, can generally be set plane detector, trackless laser navigation and positioning, the infrared temperature measurement, smart meter reading, the core technology such as image recognition in a body, the all-weather inspection of power transmission and transformation equipment, data acquisition, video monitoring, wet temperature measurement, pressure monitoring, improve the power transmission and transformation equipment in safe operation, and generate analysis inspection report. By remote control, can undertake inspection of outdoor high voltage equipment, equipment inspections can partially replace the operator at a certain time, timely find thermal defects of power equipment, in the event of abnormal emergency, intelligent inspection robot can be used as mobile monitoring platform, instead of artificial timely find out the equipment failure, and even replace artificial troubleshooting operations, reduce security risks.

The working mode of intelligent robot includes visible light detection, infrared detection and omni-directional detection. Visible light detection is mainly in the daytime, infrared detection is mainly at night, and all detection is mainly for actual test, which requires visible light and infrared detection simultaneously. Inspection robot power needs to the working status of substation equipment for testing all day, at present, the substation inspection robot in the detection of various work condition of the equipment, use of equipment of real-time image to be detected and the equipment of the template image registration, and marker to be detected in the acquisition of image equipment area, in order to accurately identify device status.

Traditional power inspection process, the main operators through the observation, touch, listen, smell sensory or instrument for site inspection equipment, such as equipment running status, testing the actual effects related to inspection personnel's professional quality and its working state, there is a certain error, defect of holes, etc., using intelligent inspection robot can avoid the error. In addition, extreme weather, harsh terrain environment, toxic and harmful gases, inflammable and explosive conditions, etc. all pose great risks to the safety of manual patrol inspection. Used with the explosion-proof type of thermal camera explosion-proof type robot can ignore the flammable and explosive, poisonous and harmful gas, can be used in harsh conditions, the transmission of infrared and visible light image at the same time, support the early warning model, it can be through the image acquisition and recognition, abnormal alarm functions, the temperature parameters of poisonous and harmful, real-time detection, flammable and explosive gas found abnormal, timely effective liberation of human make up for the deficiency of the artificial inspection, improve the efficiency of equipment operation maintenance, saving cost greatly reduced the loss, avoid casualties, potential safety hazard to realize unattended management mode of operation maintenance effectiveness, Improve the safety level of equipment and power grid.

Yoseen T Type Bi-Spectrum Thermal Camera Used in Patrol Robot

In addition, the indoor track robot equipped with Yoseen thermal imaging camera can be used for monitoring and fault detection of electrolytic cell production, monitoring of hazardous chemical warehouse, production workshop and storage shelves, etc., which can realize 24-hour monitoring and detection of production and storage, and improve the efficiency and safety of detection.
