Garbage Power Station Dump Pit Temp Monitoring
Yoseen infrared is a company focusing on the R & D, production and sales of temperature - measuring infrared thermal camera. Our thermal cameras are widely used in human body temperature measurement, metallurgy, power system, security and other fields.
System introduction System features User benefits

1. Project Background

With the rapid development of economy, more and more garbage is produced every day. In order to avoid the appearance of "garbage besieged city", garbage incineration power generation has become the best solution. Its reduction, harmless and resource-based disposal method of domestic garbage has been paid attention to by the government and recognized by the public. Every day, the garbage from many places is transported to the garbage incineration power station. The garbage that is not incinerated in time needs to be piled up to the special garbage dump. When the garbage dump is missed for a long time, the temperature will rise due to the fermentation of garbage, and there is a hidden danger of fire. Therefore, it is particularly important to monitor the temperature of the refuse pit.

Standard letter for metallurgy, electric power, waste, coal mine, aquaculture and other industries provide the feasibility of infrared thermal imaging infrared monitoring solution, effective thoroughly solves the problem of industry customers, obtained the widespread customer trust, more detailed presentation, performance and technical advice to standard optimal letter website, gridded optimal letter to contribute more power for each big industry, customer win-win future together.

2. Project Overview

The project is located in a waste incineration power plant in Huaibei. The waste dump pit needs to be installed with a temperature-measuring double-spectral infrared ball machine. The infrared thermal camera is used to monitor the temperature and at the same time, visible light is used to assist positioning. When the infrared thermal camera detects the temperature is too high, it will give an alarm and manually start the fire gun to eliminate the fire hazard in time.



Garbage Power Station Dump Pit Temp Monitoring

Project Site Map

3. Installation and Selection

The garbage dump pit is 75 meters long and 40 meters wide. The installation position of the machine is about 22 meters away from the bottom of the garbage dump pit. One temperature-measuring double-spectral infrared ball machine is installed in the northeast corner and the southeast corner respectively.

After calculation, both of the two billiarder machines use 10mm non-thermalized lens, the field of view is about 36°×27°, the field of view at a distance of 22 meters is about 14m×10.6m, and the identifiable minimum ignition area is about 11cm×11cm.

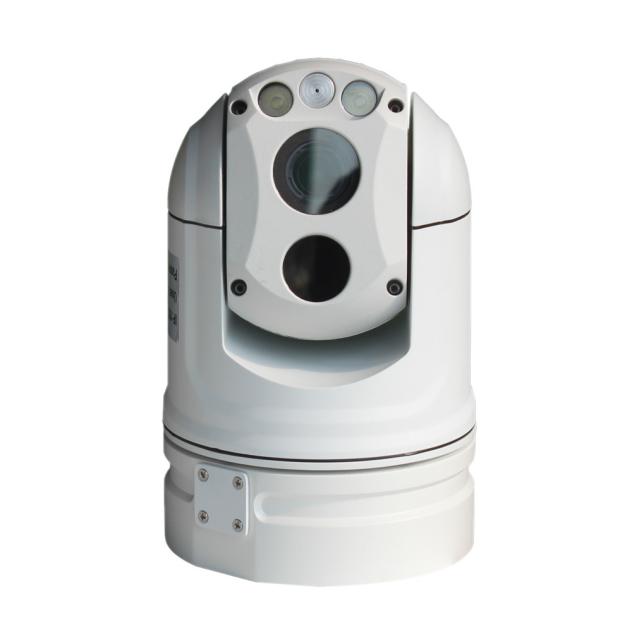

Yoseen Small Bi-Spectrum Globular Thermal Camera

4. User Benefits

The waste pit monitoring system can monitor the temperature of waste surface in real time, ensure the safety of production, realize unattended at the same time, improve work efficiency. The system features are as follows:

1. Alarm visualization: infrared thermal imaging and visible light images are displayed simultaneously. Staff can quickly locate the alarm position and turn on the fire gun.

2. Automatic cruise: Multiple preset positions can be set by the software to operate in the intelligent way of the machine without supervision.

The cruise is automatically started at a fixed time and the thermal image with temperature information taken during the cruise is saved for later viewing

And offline analysis.

3. Intelligent alarm: During the cruise, if it is found that the temperature is too high or the garbage pit is on fire, it will be released from

Dynamic alarm, through software alarm and sound and light alarm, remind the staff of the specific alarm location and information.

4. Improve efficiency: The system is highly automated and equipped with automatic patrol inspection, intelligent alarm and alarm

Automatic storage of pictures, automatic generation of reports and other functions, reduce the number of personnel patrol, improve personnel work efficiency.

technical parameter

3. Installation and Selection

The garbage dump pit is 75 meters long and 40 meters wide. The installation position of the machine is about 22 meters away from the bottom of the garbage dump pit. One temperature-measuring double-spectral infrared ball machine is installed in the northeast corner and the southeast corner respectively.

After calculation, both of the two billiarder machines use 10mm non-thermalized lens, the field of view is about 36°×27°, the field of view at a distance of 22 meters is about 14m×10.6m, and the identifiable minimum ignition area is about 11cm×11cm.



Yoseen Small Bi-Spectrum Globular Thermal Camera
