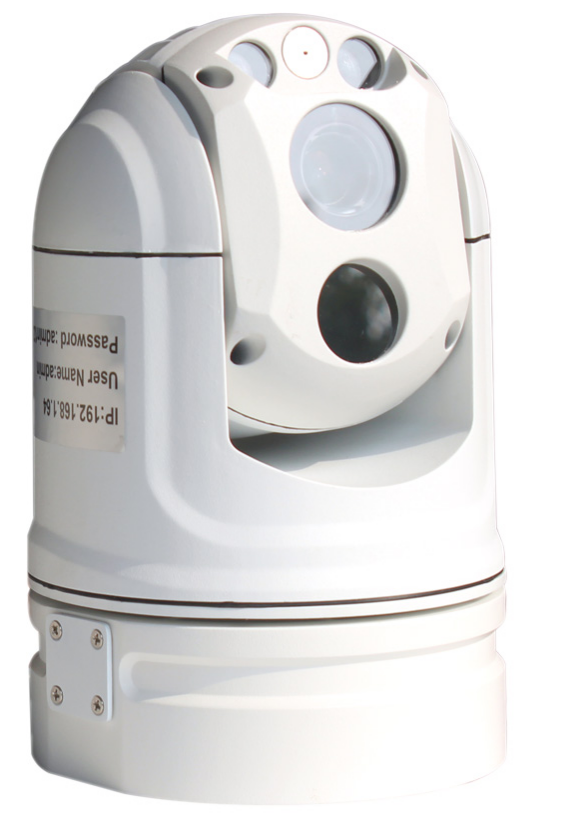

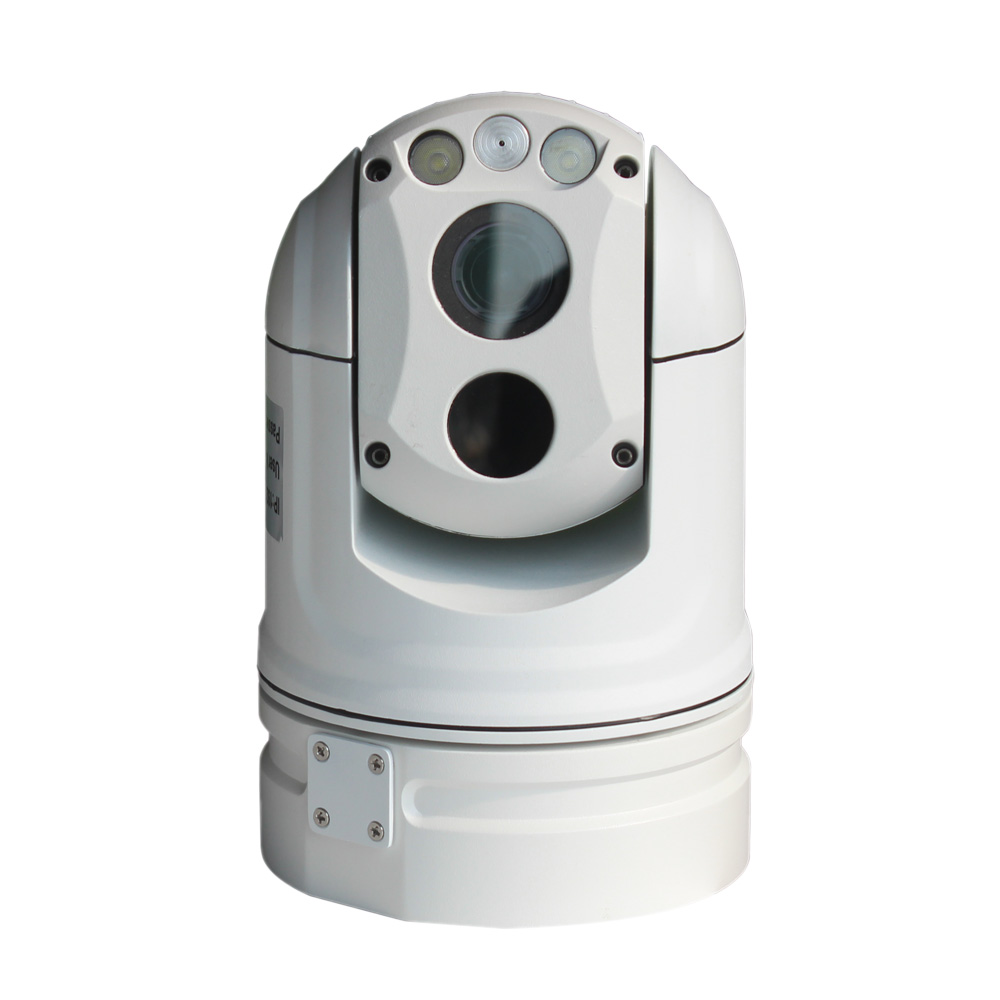

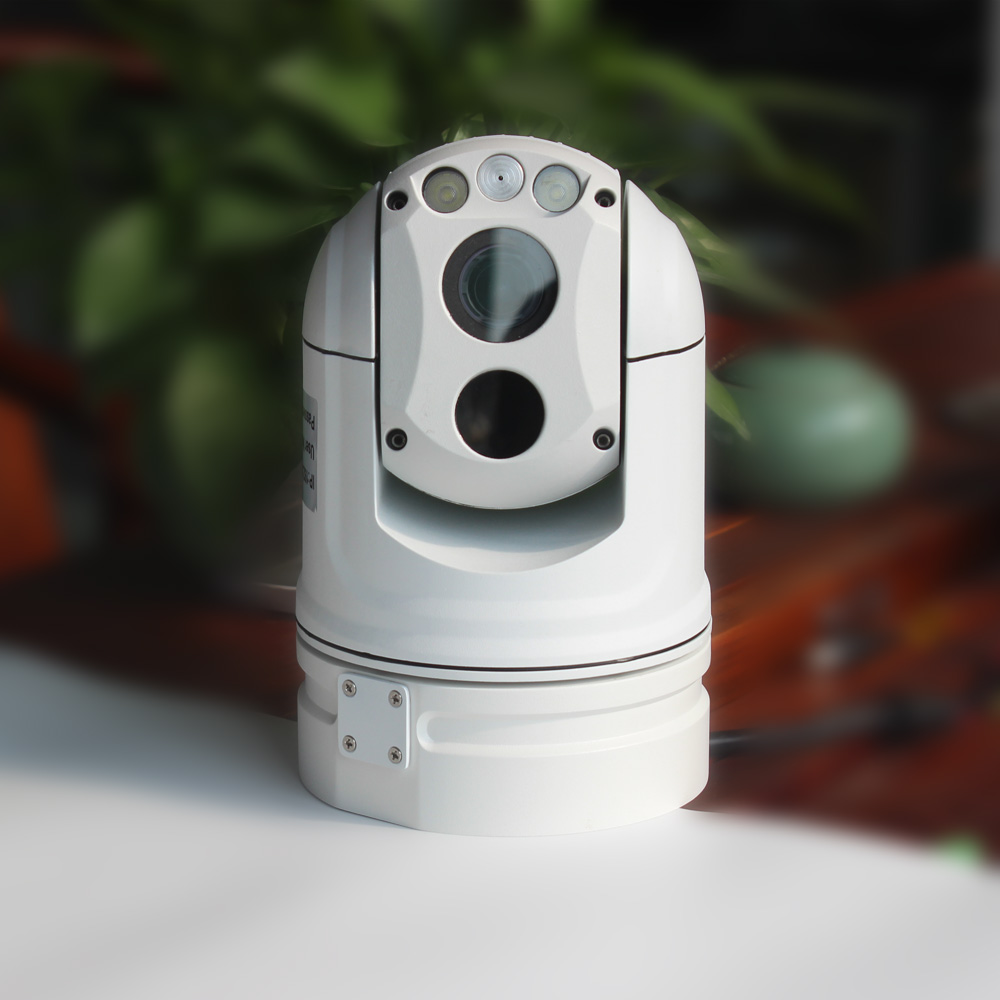

Small Bi-Spectrum Globular Thermal Camera
Small Bi-Spectrum Globular Thermal Camera
It integrates visible light, infrared thermal imaging, high-performance turntable and intelligent algorithm into one, which is suitable for important security occasions requiring real-time preview, preset detection, automatic alarm, data storage and analysis, such as power monitoring, hazardous chemicals monitoring, fire monitoring and so on.
  • Accurate temperature measurement & clear images
    Accurate temperature measurement, clear images and supports high-definition transmission of visible light
  • Stable operation, adapt to bad weather
    Stable operation, adapt to bad weather, support automatic cruise and automatic alarm
  • Support NVRs, low network bandwidth, flexible network
    Single network cable can transmit infrared temp and visible light images at the same time

Product Parameters





Thermal Imaging Parameters






Frame frequency



Wave band


Temp range


Camera lens

Support multiple camera options

Temp measuring ways


Points & areas measuring

Temperature display

Global high and low temp tracking, point/line/polygon temp measuring templates,  multiple objects can be added, set independent threshold range, sampling period and draw historical temp curve template, set multiple shielding areas


Focus Mode

Electric/manual, electric lens supports autofocus


Image enhancement

Adaptive drawing, manual enhancement, electronic zoom


Color palette

White hot, black hot, iron red, red saturated, user-defined and others



Video output

100M Ethernet +PAL analog video, with temp measurement area display

Digital zoom

x2, x4


Visible Light Parameters


Image resolution




2 million pixels


Sensor type

1/2.8’’ Progressive Scan CMOS


Camera lens

4x optical zoom, f=2.8-12mm (customizable)

Horizontal view angle

115°~33.8° (wide angle - far view)

Close range

10mm~1500mm (wide angle - far view)

Zoom speed

About 1s

MIN illumination

Color: 0.05lux, black and white: 0.01lux, white light or infrared supplementary light: 0Lux

Holder Performance


Autonomous platform software, or HAIKANG client, or 485 line

Communication interface


Network output

Command control

The motion direction, angle, speed, preset position, cruise scan and initial action of power on of the holder can be controlled by software function interface

Preset points

256 preset points, accuracy < 0.05 °


Cruise scanning

6 pieces, each can set 16 preset positions, preset time adjustable

Automatic focus speed control

The control speed is automatically adjusted according to the length of the focal length of the white light


Vertical angle

-20°(look down) ~ +90°(look up)


Horizontal angle

360°continuous rotation, without monitoring blind area

Vertical rotation velocity


Keying 100°/S, manual 0.5° ~ 80°/S

Horizontal rotation velocity


Keying 100°/S, manual 0.5° ~ 80°/S

AUTO rollover function

Achieve 180° automatic rollover continuous monitoring in vertical direction

Power  on operation


The initial action of power on the product can be set

Installation way

Supports vertical and upside-down installing


Support double LED supplementary lights

Network Function Processing

Data interface

100M dual network output

Video processing


Image output

Main stream: 1280 x 720; Sub code stream :640 x 360, 352 x 288


Network protocol



Business functions

Support WEB configuration, OSD, real-time video transmission,  movement detection and IO alarm linkage front-end storage,  front-end storage playback/download, movement detection and IO alarm center alert and screen pop up linkage, MJPEG capture, unified client remote monitoring software, MYEYE platform and others; Provide complete SDK development kit (including JAVA)


General Specification

Total weight




Built-in interchanger, single cable


Wiring method

Side outlet line or bottom outlet line is optional, side outlet line is aviation socket and aviation line, bottom outlet line is center hole lead line


Shell material

Magnesium alloy



The paint surface of the machine is even and smooth without dropping paint


Protective lens

The double optical path has protective lens, including the germanium lens for infrared


Power supply

DC12V, power consumption of the whole machine<20W


Protection level

IP66, TVS 6000V anti-lightning, anti-surge, anti-surge. EMC meets CE/FCC standard


Working temp

-20℃~45℃, humidity <90%


Secondary Development

Software support

Provide complete related software or SDK development kit (including JAVA) for head control, visible light and thermal camera.
