On-line Temperature Measuring Thermal Camera
On-line Temperature Measuring Thermal Camera
Yoseen X series thermal camera has accurate temperature measurement and excellent performance, and is suitable for various complex and harsh use environments. It is an infrared thermal camera series that can be selected for use scenarios with high requirements on the performance of infrared thermal camera.
  • Full-frame, high-speed accurate temp measurement
    Has accurate temperature measurement and excellent performance
  • Professional software, data analysis and management
    Matched with the unique calibration algorithm for temperature measurement and the user-friendly software
  • Suitable for various complex & harsh environments
    No matter it is used alone or developed with secondary integration, it can meet the differentiated applications

The X-series are small in size, light in weight, rich in interfaces, and equipped with terminal software with rich functions and SDK package that is easy to use. No matter the product is used alone or developed with secondary integration, it can meet the differentiated application needs of users.The X-series are small in size, light in weight, rich in interfaces, and equipped with terminal software with rich functions and SDK package that is easy to use. No matter the product is used alone or developed with secondary integration, it can meet the differentiated application needs of users.



PRODUCT PARAMETER

Model Parameters

Model                                                                             X1024B                   X640D                   X384D                   X160A
IR Resolution                                                                 1024*768                 640*480                384*288                160*120
lmage Frequency                                                           up to 25HZ                        30Hz                     50Hz                     50HZ
Pixel Sze                                                                        17μm
Themal Sensitivity/NETD                                               ≤50mK@25C
Wave Band                                                                     8-14μm
Focal Length                                                                   5mm, 7mm, 8mm, 10mm, 15mm, 17mm, 25mm, etc. (can be customized)
Focusing method                                                            fixed focus lens



Measurement

Temperature Measurement Model                                  Support global high and low temperature tracking, support point, line, polygon and other temperature measurement
                                                                                        modes;  support the addition of multiple temperature  measurement objects and the independent  setting of the alarm
                                                                                        threshold range
Temperature Accuracy                                                     ±2°C or ±2%, can be increased to ±0.4°C
Object Temperature Range                                             Support -20°C~150°C, 0°C~300°C, 60°C~600°C various temperature measurement ranges
                                                                                         (please call us for more temperature measurement ranges)
Temperature Measurement Method                                Point temperature measurement, line temperature measurement, area temperature measurement



Imaging Distance                                                             Approx. 20x focal length to infinity
Color Palettes                                                                  White hot, black hot, iron red, rainbow and many other color palettes
Image Enhancement                                                        Adaptive enhancement, manual enhancement, detail enhancement
Video Output                                                                    Ethernet, with temperature measurement area display


Date

Data Interface                                                                 100M/1000M network output
Network Protocol                                                             TCP/IP、HTTP、RTP、RTSP、ONVIF
Single Frame Temperature                                              JPG or BMP image format with temperature information
Temperature Flow                                                            Full radiation temperature information storage, offline temperature correction
Video                                                                                H.264 standard video format, compatible with general video playback software

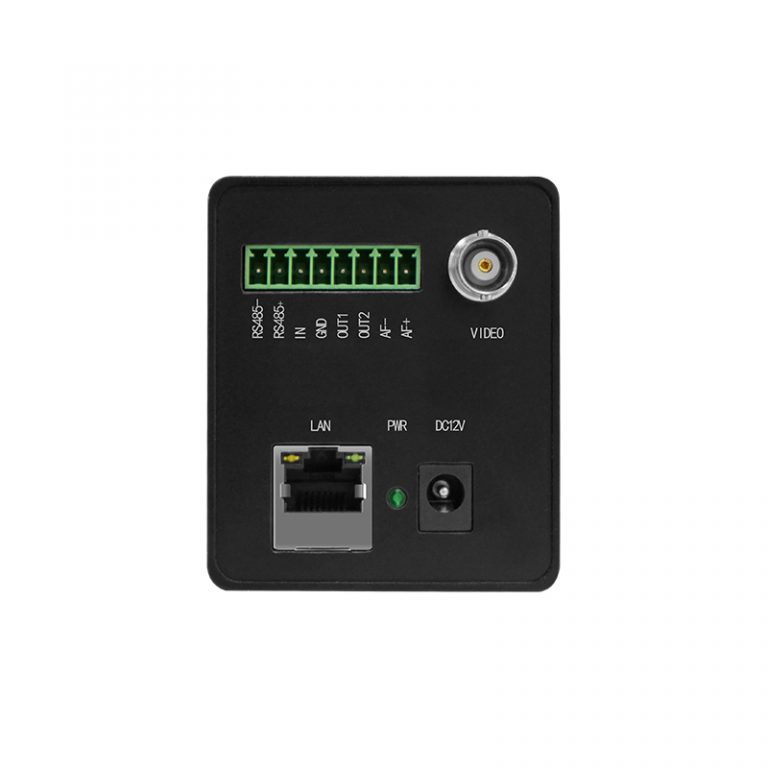

Electrical Interface

Power Supply                                                                   DC12V, typical power consumption 2.5W@25℃
Analog Video                                                                    Composite video output supporting NTSC, PAL
Ethernet                                                                            Standard 100/1000M Ethernet interface
Serial Port                                                                         RS485
Motorized Lens                                                                 Supports 3.3V Motorized Lens
GPIO                                                                                1-way magnetic isolation input, 1-way relay output


Physical Properties

Dimensions                                                                        67*58*61.3mm
Degree Of Protection                                                          IP54
Weight                                                                                253g (without lens)
Impact Resistance                                                              25G
Vibration Resistance                                                           2G


Environmental Parameters

Operating Temperature                                                      -10~+60℃
Operating humidity                                                             Non-condensing 10%~95%
StorageTemperature                                                           -40ºC~+85℃
