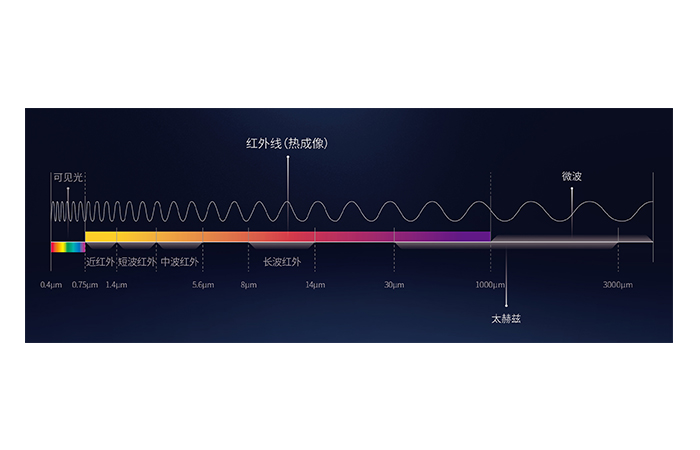

Mid-wave infrared and long-wave infrared are two common wavelength ranges in the infrared spectrum. They have their own advantages and disadvantages in different application fields. Here are their main features:

Mid-Wave Infrared (MWIR - Mid-Wave Infrared):

Wavelength range: usually refers to the infrared wavelength between 3-5 microns.

Thermal radiation intensity: The thermal radiation intensity of mid-wave infrared at a certain temperature is relatively high, and it is more sensitive to the detection of heat sources.

Atmospheric penetration: MWIR has somewhat better atmospheric penetration than LWIR, which is an advantage for certain applications, such as night vision and aerial monitoring.

Infrared detectors: Mid-wave infrared detectors are relatively mature, the technology is relatively mature, and the manufacturing cost is relatively low.

Thermal Noise: Due to the high intensity of thermal radiation, MWIR may be affected by thermal noise under certain conditions.

Long Wave Infrared (LWIR - Long-Wave Infrared):

Wavelength range: usually refers to the infrared wavelength between 8-14 microns.

Thermal radiation intensity: The thermal radiation intensity of long-wave infrared at a certain temperature is low, and the detection of heat sources is not as sensitive as medium-wave infrared.

Atmospheric penetration: The atmospheric penetration of long-wave infrared is poor, especially under high humidity and rain and fog conditions, the optical signal is easily absorbed and scattered.

Infrared detectors: Long-wave infrared detectors are technically complex and costly to manufacture, but their performance is gradually improving as technology advances.

Thermal Noise: Due to the lower intensity of thermal radiation, LWIR may be less affected by thermal noise under certain conditions.

Applications of MWIR:

Military and Security: MWIR is widely used in night vision equipment, missile guidance, fire control systems, etc. It can detect targets at night or in adverse weather conditions and provide effective surveillance and identification capabilities.

Industrial Monitoring: MWIR can be used to monitor thermal anomalies in industrial processes, such as fault detection, preventive maintenance, and quality control.

Thermal imaging: Mid-wave infrared thermal imaging cameras are widely used in the inspection of building structures, power lines, oil pipelines, etc., which help to find potential thermal problems and safety hazards.

Environmental Monitoring: MWIR can be used to monitor conditions such as thermal pollution, fires, and land surface temperatures in the environment.

Fields of application of LWIR:

Infrared imaging: Long-wave infrared thermal imaging cameras are widely used in military, security, search and rescue and other fields. They can provide high-quality thermal imaging in low-light conditions or complex environments for detecting objects, people and dynamic changes.

Environmental monitoring: LWIR is used to monitor pollutants, methane leaks and other greenhouse gases in the environment. It plays an important role in climate research, environmental protection and monitoring.

Medical Applications: LWIR technology is used in the medical field for medical imaging and diagnosis. For example, it can be used to measure body surface temperature, detect disease and injury, and provide thermobiological information in medical research.

Manufacturing and Industrial Applications: LWIR cameras can be used for preventive maintenance, equipment failure detection and quality control in manufacturing and industry. It can help increase productivity and reduce the risk of equipment failure.

Construction industry: Long-wave infrared technology can be used to detect problems such as building structures, insulation defects, and energy waste. This helps to improve the energy efficiency and safety of buildings.

Agriculture: Applications of LWIR in agriculture include crop monitoring, soil moisture measurement, and vegetation studies. It helps optimize agricultural production and resource management.
