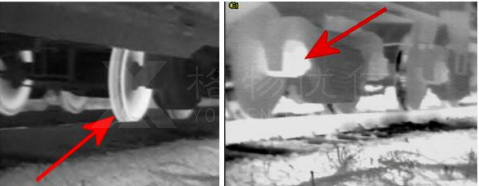

On the highspeed railway lines where trains race past, rolling stock streaks by like silver lightning, embodying efficiency and modernization. Behind this extreme speed, however, critical train components endure severe operating conditions. As a core moving part connecting wheels and bearing the full weight of the car body, the running condition of the axle bears a direct bearing on train safety. During highspeed operation, axle bearings are subject to tremendous mechanical stress and complex friction. Prolonged service may easily trigger local overheating (hot axle) due to bearing wear, loose axle bushes, abnormal axial or radial clearances and other faults. Failure to detect such hazards in time could lead to catastrophic consequences.

Traditional manual inspection or contactbased temperature measurement methods are no longer fitforpurpose for highspeed, dynamic operating scenarios. Suffering from slow response, high risk of missed detection and poor positioning capability, they cannot meet the stringent “zerodelay” safety earlywarning requirements of modern railways. Consequently, noncontact, visual, highprecision infrared thermal imagers — especially online monitoring thermal imagers purposebuilt for highspeed moving targets — have become an indispensable technical safeguard for railway operational safety.

Challenges and Solutions for Highspeed Movingtarget Temperature Measurement

Temperature monitoring of passing train axles cannot be accomplished by ordinary thermal imagers. Major technical challenges include:

· Ultrashort exposure window: When a train passes a monitoring point at high speed, each axle stays within the fieldofview for only milliseconds. Conventional thermal imagers with low frame rates may fail to capture even one clear thermal image, let alone deliver continuous and accurate temperature readings.

· Motion smear suppression: Thermal imagers with low frame rates produce severe motion smear when imaging fastmoving objects, causing substantial temperaturereading distortion and failing to reflect true hotspot temperatures.

· Rapid thermal response: Axle hotspots may develop instantaneously. The thermal imager detector must feature an extremely short thermal time constant to keep pace with temperature variations and capture fleeting signs of overheating.

To address these challenges, the 125 Hz highspeed infrared thermal imager developed by Yoseen delivers an optimal solution for online highspeed axletemperature monitoring.

Yoseen 125 Hz Highspeed Thermal Imager: A Safety Guardian Engineered for Speed

Its core advantages directly tackle the aforementioned pain points:

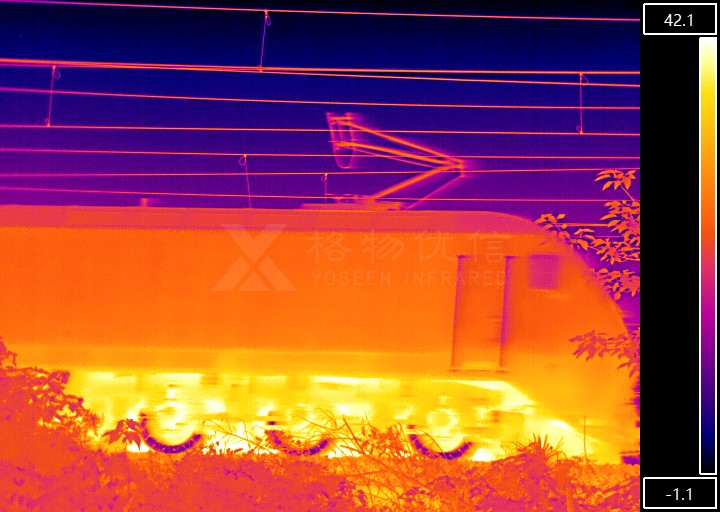

· 125 Hz ultrahigh frame rate: It generates 125 infrared thermal images per second. Even when trains travel at over 300 km/h, the monitoring system captures dozens of consecutive, sharp thermal image frames of axles within the narrow observation window. Motion smear and missed detections are virtually eliminated, enabling crisp framebyframe visualization.

· 4 ms ultrashort thermal time constant: This key parameter characterizes the detector’s responsiveness to temperature changes. The 4 ms ultrafast response enables sensitive detection of subtle, rapid temperature fluctuations on axle surfaces. Even transient minor hotspots are reliably identified, substantially advancing the safety earlywarning threshold.

· Accurate temperature measurement and analysis: Built upon highspeed imaging, advanced imageprocessing algorithms and temperatureanalysis software enable the system to automatically identify individual axles from massive thermal datasets, and perform realtime, precise temperature computation and tracking. Once temperatures at any location exceed safety thresholds, the system triggers immediate alarms with accurate axleposition information for maintenance crews.

Conclusion: Cornerstone of Intelligent Operation & Maintenance

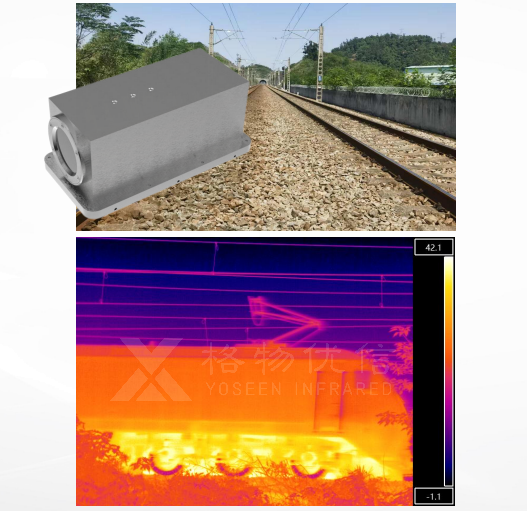

Deployed at key monitoring points along railway tracks, the Yoseen 125 Hz highspeed thermal imager acts as “tireless 24hour infrared eyes” for inservice trains. It realizes allweather, noncontact, online highspeed and highprecision axletemperature monitoring, transforming conventional passive, periodic maintenance into proactive, predictive intelligent operationandmaintenance workflows.

It greatly improves railway safety redundancy, effectively prevents serious traffic accidents caused by axle overheating, optimizes maintenance workflows and reduces operational costs. As one of the key technical facilities propelling highspeed railways toward greater safety, intelligence and efficiency, the highspeed thermal imager quietly safeguards every journey along the nation’s steel rail network.
