High-speed thermal imager

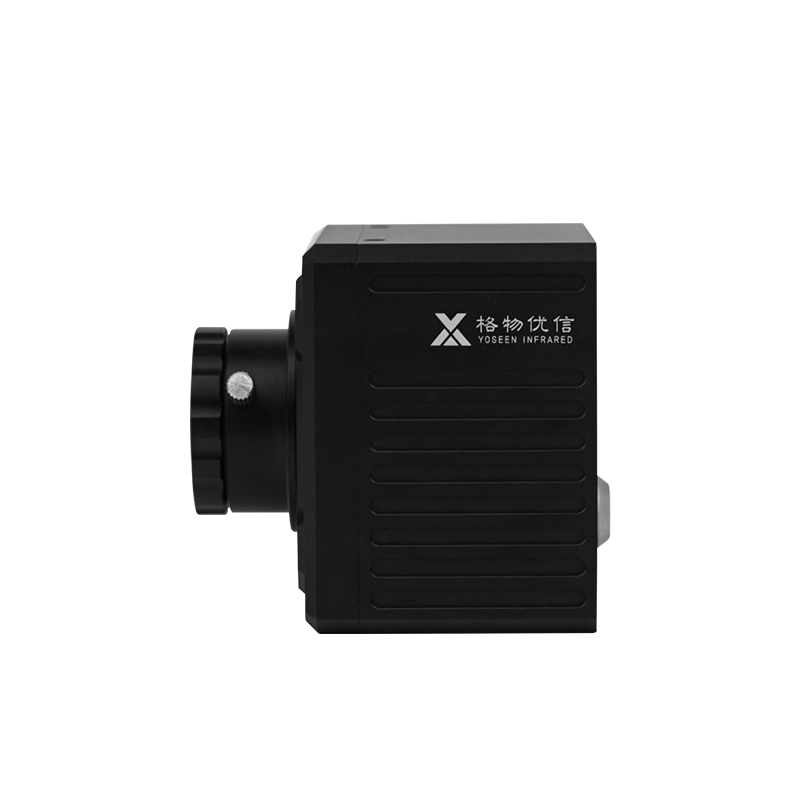

YOSEEN X384/X640H Thermal Camera
The Yoseen X384/640H series infrared thermal cameras are high-precision, high-sensitivity and high-stability online temperature measurement infrared thermal cameras.
  • Ultra-high frame rate
    75HZ/125HZ
  • Thermal time constant
    4ms
  • Netd
    ≤50mK@25°C

 Yoseen X384/640H series infrared thermal camera is widely used in intelligent automation, human body temperature measurement, medical diagnosis, scientific research, power monitoring, security imaging, fire prevention, industrial control and other industry applications.

Features/Performance

X384/640H

Detector

Model

X640H

X384H

Infrared Resolution

640*512

384*288

Frame Frequency

75Hz

125Hz

Pixel Size

12μm

Thermal Time Constant

4ms

Wave Band

8~14μm

Focal Length

10mm/15mm etc. (Customizable)

4mm/5mm/6.8mm

etc. (Customizable)

Focusing Mode

Fixed focus

Temperature Measurement

Mode

Support global high and low temperature tracking, support point, line, polygon and other temperature measurement modes; It supports the addition of multiple temperature measurement objects and the independent setting of alarm threshold range

Accuracy

±2℃ or ±2%

Range

Support 0℃~300℃ (Customizable)

Method

Point, line and area temperature measurement


Imaging Distance

About 20 focal lengths to infinity

Color Palette

White heat, black heat, iron red, rainbow and other color palettes

Image Enhancement

Adaptive enhancement, manual enhancement, detail enhancement

Video Output

Ethernet, with temperature area display

Data

Data Interface

100M/1000M network output

Network Protocol

TCP/IP、HTTP、RTP、(RTSP、ONVIF Customizable)

Single Frame Temperature

JPG or BMP image format with temperature information

Temperature Flow

Full radiation temperature information storage, can be offline temperature correction

Video

H.264 standard video format, compatible with universal video playback software

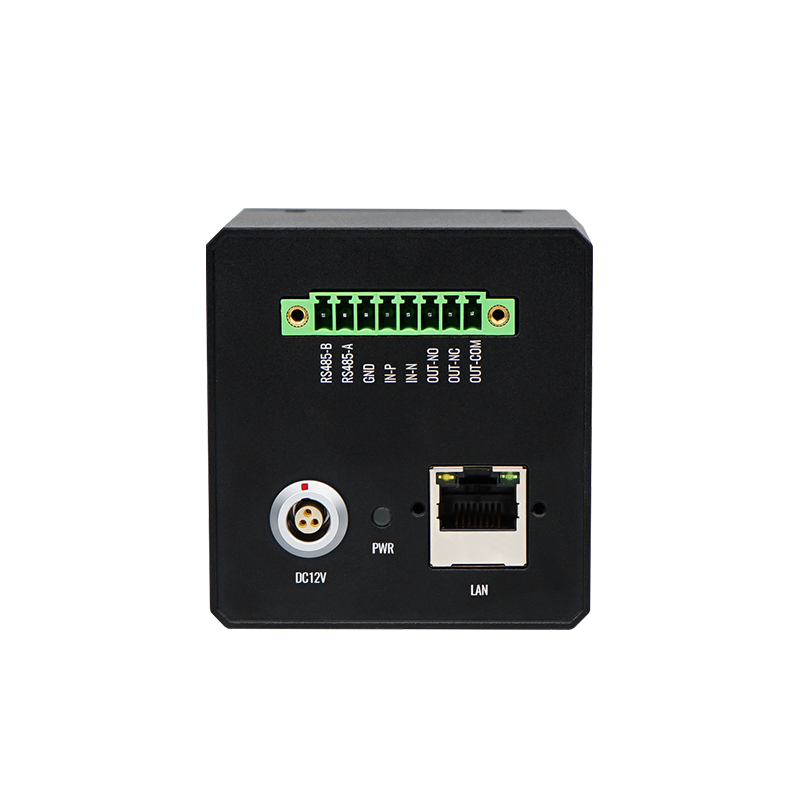

Electrical Interface

Power Source

DC12V

Ethernet

Standard 100/1000M Ethernet interface

Serial Port

RS485

GPIO

1 magnetic isolation input, 1 relay output (NC, NO, COM)

General Norm

External Dimension

51.5*63.6*67mm(excluding the lens)

Protection Level

IP54

Weight

Approximately 275g (excluding the lens)

Power Dissipation

3W

Environmental Parameter

Operating Temperature

-20℃~+70℃

Operating Humidity

Non-condensing 10%~95%

Storage Temperature

-40ºC~+85℃

Client

Real-time Temperature Display

Support

Multiple Temperature Measurement Objects

Support

Alarm Function

Support

Video/Photo/Playback

Support

Secondary Development

Software Support

Provide professional infrared analysis software or complete SDK development kit
