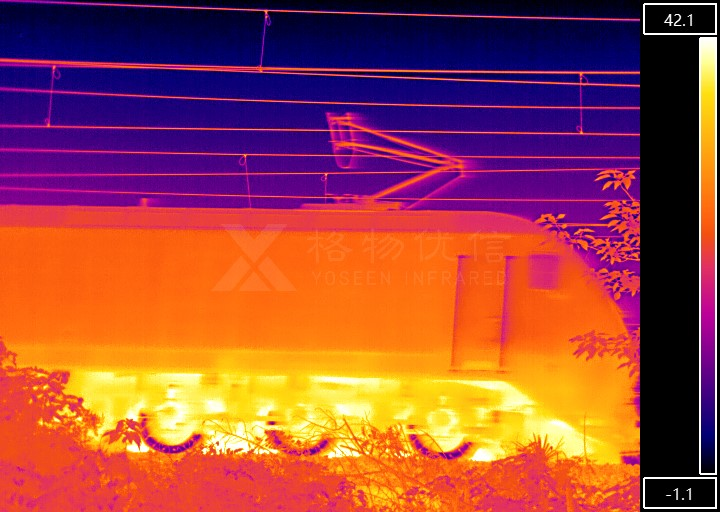

With the rapid development of electrified railways, the safe operation of electric traction trains has attracted increasing attention. As a critical component of electric traction vehicles, the pantograph draws electric power from the overhead contact system. Its operating condition directly affects the power supply safety and operational efficiency of trains. Exposed to harsh environments for long periods, pantographs are prone to faults such as overheating, wear and poor contact. Therefore, real-time on-line temperature monitoring is of great significance. As a non-contact temperature measurement technology, infrared thermal imagers can capture the thermal distribution of pantographs in real time, providing a reliable basis for fault early warning and condition assessment.

1. Technical Challenges of Pantograph On-Line Monitoring

The roof space of electric traction vehicles is limited, and equipment installation must not compromise the normal operation of other train components (e.g., high-voltage cables, insulators and pneumatic systems). Accordingly, the mounting position of the thermal imager shall meet the following requirements:

· Space adaptability: The device shall have a compact form factor to avoid interfering with pantograph lifting/lowering and the normal operation of other components.

· Field-of-view coverage: It shall fully cover key pantograph zones (e.g., contact strips, hinges and contact points) to eliminate blind monitoring areas.

· Environmental resistance: It shall withstand vibration during high-speed operation, temperature fluctuations, electromagnetic interference and severe weather conditions.

· Real-time performance and accuracy: Temperatures change rapidly during dynamic pantograph operation, requiring the thermal imager to deliver high frame rates and high thermal sensitivity.

2. Selection Criteria for Infrared Thermal Imagers

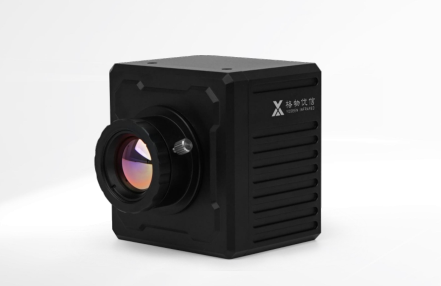

To address the above requirements, the YOSEEN-X640E series thermal imager, model X640E152WF15, is recommended. Its key technical advantages are as follows:

High Resolution and Imaging Quality

It features 640×480 infrared resolution, enabling clear capture of subtle local temperature differences on pantographs for accurate identification of fault points such as local overheating or poor contact. The 17 μm pixel pitch further enhances image definition.

High Frame Rate and Dynamic Response

The 50 Hz high frame rate satisfies real-time monitoring requirements for high-speed pantograph motion and prevents missed detection caused by image smearing or latency.

Thermal Sensitivity and Temperature Measurement Accuracy

NETD ≤ 50 mK @ 25 °C. It can effectively distinguish fault zones from normal areas even under low temperature-difference scenarios, improving the reliability of early warning.

Optical Design and Compatibility

Equipped with an athermalized 15 mm fixed-focus lens, it maintains stable depth of field and field of view without frequent refocusing, suitable for fixed roof mounting. Its 8–14 μm operating band matches the thermal radiation characteristics of most materials and reduces environmental interference.

Environmental Adaptability

Built with a robust mechanical structure, the device supports a wide operating temperature range and resists vibration and shock generated during train operation, complying with reliability requirements for railway applications.

3. Installation Scheme and Implementation Recommendations

Given the space constraints on the roof of electric traction vehicles, the thermal imager is suggested to be mounted on the flat roof area forward of the pantograph. This position offers the following benefits:

· Superior field of view: The forward mounting position covers the entire pantograph structure and facilitates monitoring of the interaction zone between contact strips and the overhead contact wire.

· High safety: It keeps clear of the pantograph’s movement envelope and high-voltage components, minimizing impacts on existing systems.

· Convenient maintenance: It allows easy routine cleaning and calibration to reduce operation and maintenance costs.

In addition, protective enclosures (waterproof and dustproof housings) and vibration dampers shall be equipped to further extend service life.

4. Application Value and Outlook

Deployment of the YOSEEN-X640E thermal imager enables long-term on-line temperature monitoring and data analysis for pantographs, which can:

· Detect potential overheating risks in advance and avoid power supply interruptions or equipment damage triggered by faults;

· Optimize pantograph maintenance intervals and shift from time-based scheduled maintenance to predictive condition-based maintenance;

· Provide data support for intelligent railway operation and maintenance systems and drive digital upgrading of traction power supply systems.

In the future, artificial intelligence algorithms can be further integrated to realize automatic diagnosis of temperature anomalies and multi-source data fusion analysis, raising the intelligence level of the monitoring system.

Conclusion

Infrared thermal imagers deliver irreplaceable technical value for pantograph on-line monitoring. With superior performance parameters and strong environmental adaptability, the YOSEEN-X640E series provides reliable safeguards for the safe operation of electric traction vehicles. As railway systems continuously pursue higher efficiency and safety, the application of such advanced inspection technologies will see deeper adoption and broader expansion.
