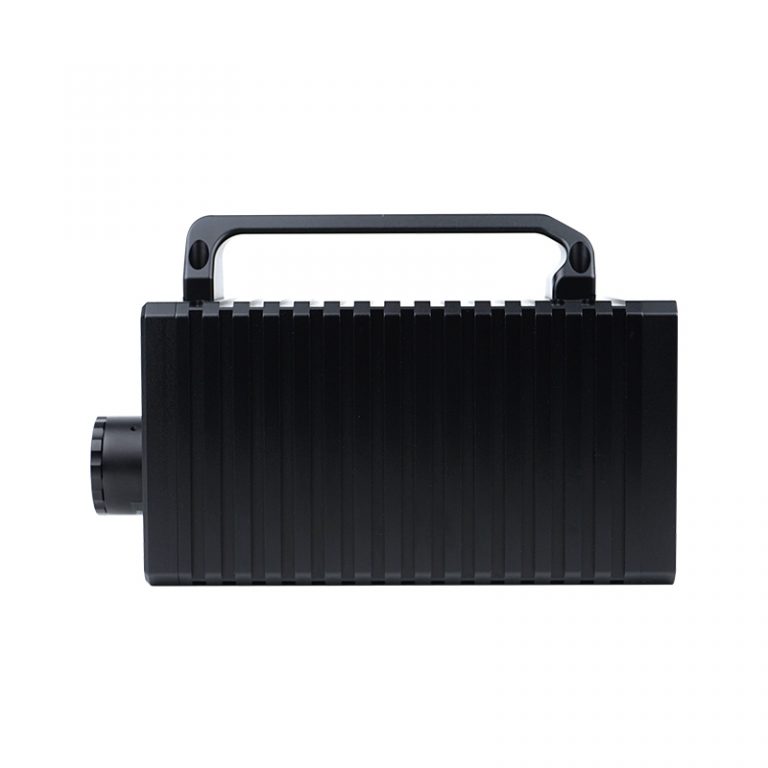

MWIR cooled thermal imager

YOSEEN6800-NA

Adopting a 640×512 indium antimonide (InSb) infrared detector, it is an on-line temperature measurement infrared thermal imager featuring high sensitivity, high resolution and high stability.

Ultra-clear Imaging, Precise Capture

640×512 high resolution, 15 μm pixel pitch
Mid-wave infrared band (3–5 μm)

It features favorable atmospheric transmission and excels particularly at high-temperature target detection.
High Frame Rate

200 Hz at full frame without image smearing, and the frame rate can reach 4182 Hz under windowed ROI mode.

Item	Parameter
Specifications
Model	YOSEEN 6800-NA
Detector Type	Indium Antimonide (InSb)
Wavelength Range	Standard: 3.7~4.8 μm
Motorized Spectral Wheel	Optional 4-position motorized spectral wheel (filter up to 1 inch max)
Resolution	640×512
Frame Rate	640×512 (200Hz), 480×384 (343Hz), 320×256 (713Hz), 240×192 (1166Hz), 160×128 (2193Hz), 128×96 (3134Hz), 128×64 (4182Hz)
NETD	≤20mK, typical
Integration Time	Preset, user definable
Imaging & Temp Measurement
Dynamic Range	16 bit
Integration Time	0.5 μs ~ maximum frame time
F-number	Standard F4.0
Lens	f25mm standard lens, 22°×17.5°, optional
Temp Measurement Range	-20~80 ℃, 60~300 ℃; custom temperature range upon consultation
Temp Measurement Accuracy	Better than ±1℃ or ±1% (take the greater value) for ≤600℃; Better than ±2℃ or ±2% (take the greater value) for >600℃
Temp Measurement Mode	Supports global high/low temperature tracking, point, line, polygon and other measurement modes
Image Display	Auto enhancement, detail enhancement, manual enhancement
Color Palette	Black Hot, White Hot, Iron, etc.

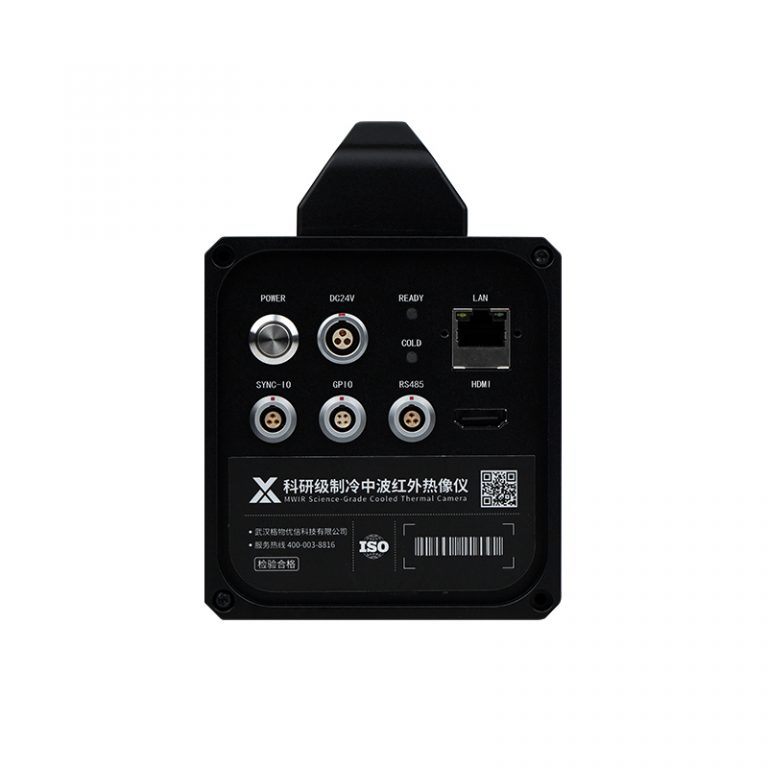

Communication Interfaces
Data Interface	Gigabit Ethernet
Serial Port	RS485
Video Output	HDMI Type-A
I/O Sync	SYNC-IN, SYNC-OUT, TTL level
Output Signal	Relay passive alarm, NC, COM, NO pins available
Electrical
Power Supply	DC24V
Power Consumption	Peak <15W, steady state at ambient temp <8W
Physical
Dimension	20010598 mm (excluding lens handle)
Weight	<3KG (including handle and standard 25mm lens)
Mounting Interface	UNC 1/4-20 standard tripod interface, M3 threaded holes
Environmental
IP Rating	IP54
Operating Temperature	-20℃~50℃
Humidity	≤95% (non-condensing)
Shock	25G, IEC68-2-29
Vibration	2G, IEC68-2-6
