MWIR thermal imager

YOSEEN-SZ

MWIR thermal imager

It enables accurate, continuous and non-contact temperature measurement of furnace burden and furnace wall. Even in the furnace environment filled with dense smoke and high temperature, it can deliver clear and stable infrared vision, breaking the physical limitations of visual camera systems.

Penetrates flames and smoke for clear visibility inside furnaces.

It effectively penetrates flames and dense smoke, overcoming the high-temperature shielding bottleneck that visible-light camera systems cannot resolve.
Supports secondary development

Full-radiation continuous temperature measurement, supports SDK secondary development.
Unattended operation

Non-contact and unattended operation achieves zero risk for personnel.

MWIR Uncooled Series Thermal Imager Technical Specifications

Parameter Item	YOSEEN-SZ-640	YOSEEN-SZ-640-A	YOSEEN-SZ-640-B
Basic Performance	-	-	-
Model	YOSEEN-SZ-640	YOSEEN-SZ-640-A	YOSEEN-SZ-640-B
Resolution	640*512	640*512	640*512
Frame Rate	74Hz	74Hz	74Hz
Pixel Pitch	12μm	12μm	12μm
Operating Waveband	3-5μm	4.2μm	3.9μm

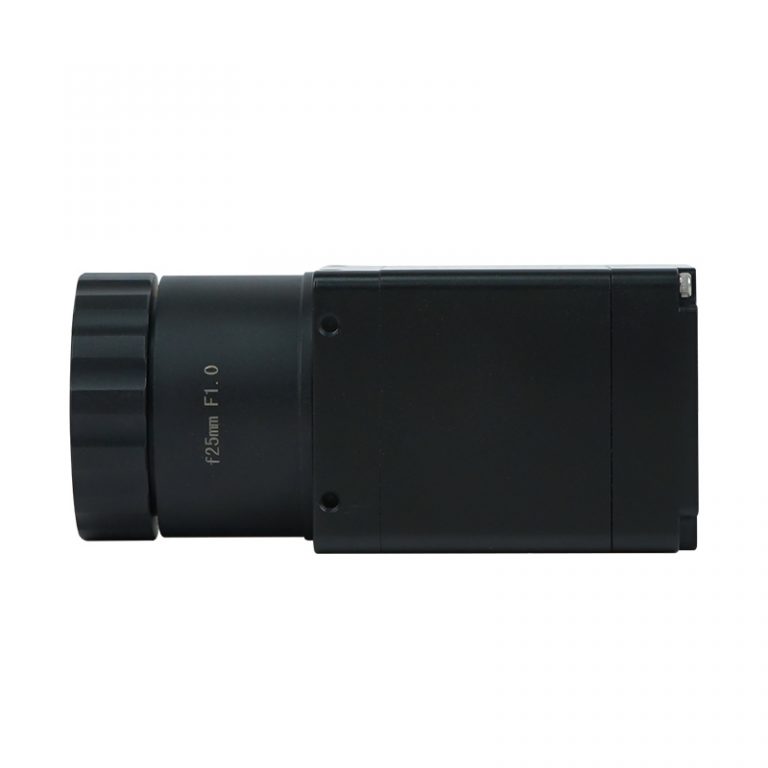

Lens Focal Length	ZF6.0 (Customizable)	ZF6.0 (Customizable)	ZF6.0 (Customizable)
Focusing Method	Manual Focus	Manual Focus	Manual Focus
Temperature Measurement Parameters	-	-	-
Temperature Measurement Mode	Supports global high/low temperature tracking; multiple measurement modes including point, line and polygon; multiple temperature measurement targets can be added with independent alarm threshold ranges
Temperature Measurement Accuracy	±2℃ or ±2%
Temperature Measurement Range	600℃ ~ 1600℃ (customizable ranges available upon request)
Temperature Measurement Type	Spot temperature measurement, line temperature measurement, area temperature measurement
Image Parameters	-	-	-
Color Palette	White Hot, Black Hot, Iron, Rainbow and other optional palettes
Image Enhancement	Adaptive Enhancement, Manual Enhancement, Detail Enhancement
Video Output	1000M Ethernet (with temperature measurement area display)
Data Transmission Parameters	-	-	-
Data Interface	1000M Network Output
Network Protocol	TCP/IP, HTTP, RTP, RTSP, ONVIF
Single Frame Temperature File	JPG / BMP format with complete temperature information
Temperature Stream	Full-radiation temperature information storage, offline temperature correction supported
Video Format	H.264, supports RTSP streaming protocol, compatible with mainstream video playback devices

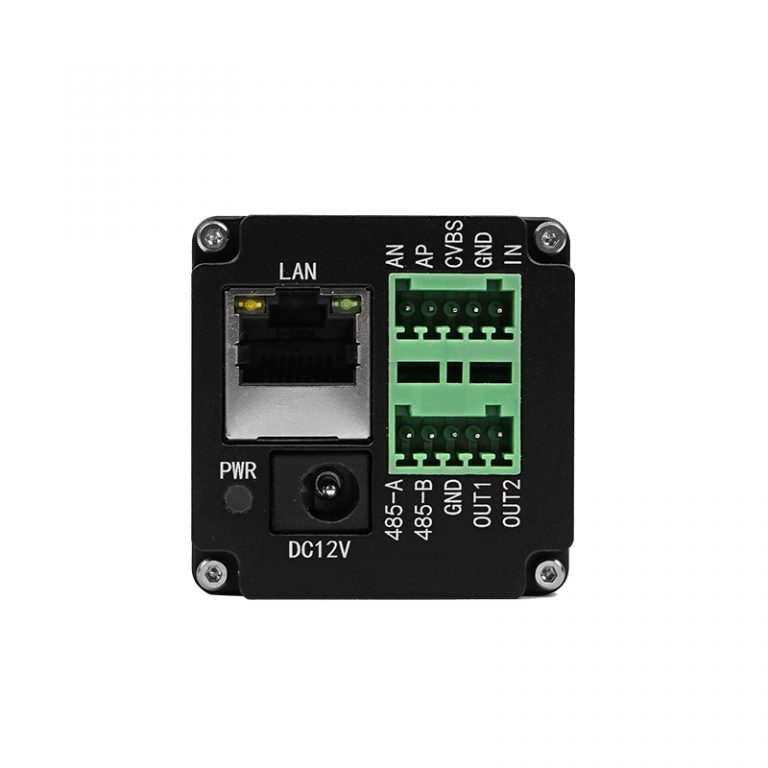

Electrical Interface	-	-	-
Power Supply	DC9V~15V, typical power consumption 2.5W@25℃
Analog Video	CVBS supported
Ethernet Port	Standard 1000M Ethernet Interface
Serial Port	RS485
General Specifications	-	-	-
Dimension	56.84242mm
Protection Class	IP54
Weight	100g (excluding lens)
Power Consumption	3W
Shock Resistance	25G
Vibration Resistance	2G
Mounting Holes	4 pcs M2 front threaded mounting holes, 2×4 pcs M3 side threaded mounting holes
Operating Temperature	-20℃~+65℃
Operating Humidity	10% ~ 95% (non-condensing)
Storage Temperature	-40℃~+85℃
Client Support	Windows Client compatible
Software Support	Professional infrared analysis software & complete SDK development package provided
