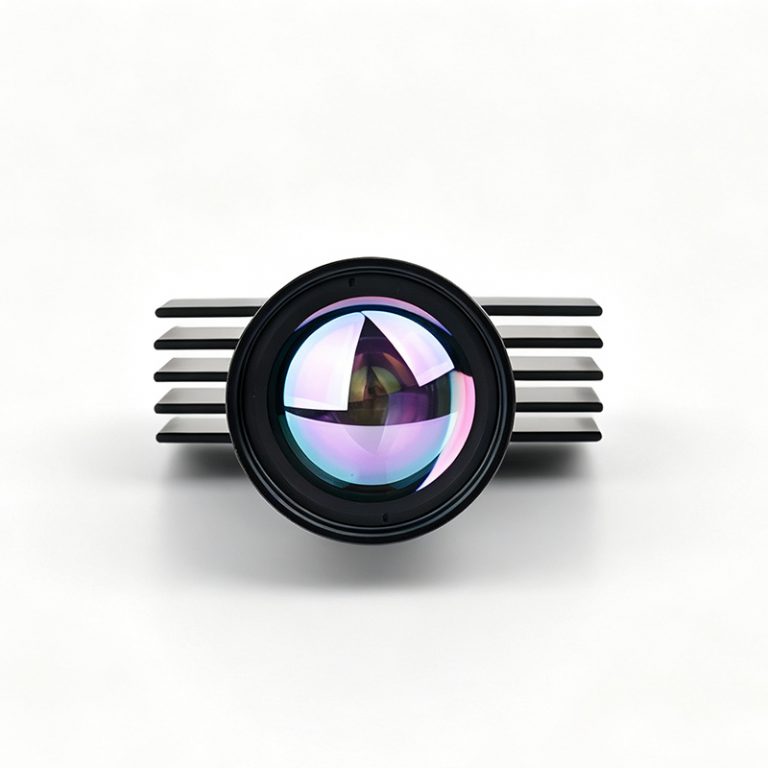

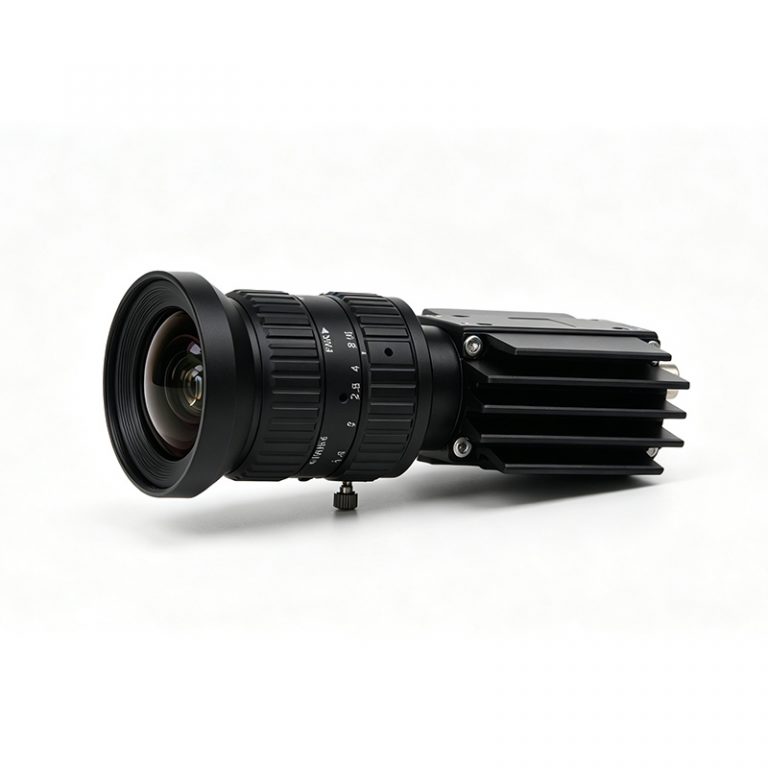

Short-wave Infrared Thermal Imager

YOSEEN-SD-640

Equipped with a high-performance short-wave infrared detector, it supports all-weather passive thermal imaging, and features strong smoke penetration and glass penetration capabilities.

penetration through smoke and glass

Locked in the 0.9~1.7 μm short-wave infrared band, it can effectively penetrate smoke, steam and some types of glass, breaking through the occlusion bottleneck that visible light and long-wave infrared cannot overcome.
Supports SDK secondary development

Output full-radiometric thermal image data, with optional professional analysis software or SDK development kit.
Self-developed temperature measurement algorithm

Adopts self-developed temperature calibration algorithm to achieve accurate temperature measurement, with temperature accuracy of ±1℃ or ±1%.

Parameter Item	Specification
Model	-
Model	YOSEEN-SD-640
Resolution	640×512
Frame Rate	139.33fps (Maximum)
Pixel Size	5μm × 5μm
Operating Waveband	0.9–1.7μm
Lens Focal Length	8mm
Focusing Method	Manual Focus
Temperature Measurement	-
Temperature Measurement Mode	Supports global high/low temperature tracking, and multiple temperature measurement modes including point, line and polygon; supports adding multiple temperature measurement targets and independent setting of their alarm threshold ranges
Temperature Measurement Accuracy	±1°C or ±1%
Temperature Measurement Range	Supports multiple temperature measurement ranges of 600–1300°C, 900–1900°C (for more temperature ranges, please contact us)
Temperature Measurement Method	Spot measurement, line measurement, area measurement
Image	-
Color Palette	Multiple palettes including White Hot, Black Hot, Iron, Rainbow, etc.
Image Enhancement	Adaptive enhancement, manual enhancement, detail enhancement
Video Output	1000M Ethernet, with temperature measurement area display
Data	-
Data Interface	1000M Network output
Network Protocol	TCP/IP, HTTP, RTP, RTSP, ONVIF
Single-frame Temperature	JPG or BMP image format with temperature information
Temperature Stream	Full-radiometric temperature information storage, offline temperature correction supported
Video	H.264 standard video format, supports RTSP streaming protocol, compatible with common video players
Electrical Interface	-
Power Supply	12VDC−10% ~ 24VDC+10%
Ethernet	Standard 1000M Ethernet interface
General Specifications	-
Protection Class	IP54
Weight	80g (excluding lens)
Power Consumption	5W
Operating Humidity	10%–80% (Non-condensing)
Operating Temperature	0°C ~ +45°C
Storage Temperature	-20°C ~ +70°C
Client	Windows client supported
Software Support	Professional infrared analysis software or complete SDK development kit provided
