LWIR Cooled Thermal Imager

Research-grade High Sensitivity Thermal Imager**

Adopting advanced T2SL cooled detector and global shutter technology, it achieves an optimal balance between 640×512 high resolution and high thermal sensitivity of ≤25mK. The full-frame output frame rate reaches 200Hz, and the window mode exceeds 3000Hz.

Research-grade Imaging Quality

Equipped with a 640×512 T2SL cooled infrared detector, it features a typical NETD ≤25mK and 16-bit high dynamic range with no additional defective pixels, ensuring research-grade high-quality thermal images for every frame.
Ultra-high Speed Dynamic Capture

Adopting global shutter technology, the full-frame data rate is higher than 200Hz, and the maximum frame rate reaches 3000Hz in window mode, with the adjustable integration time down to 45ns.
Industrial-grade Precision Temperature Measurement

Full-frame real-time temperature output. Temperature measurement accuracy reaches ±1°C or ±1%. It supports global high and low temperature tracking, as well as multiple measurement modes including point, line and polygon.

Parameter Item	Specification
Basic Parameters	-
Detector Type	T2SL Focal Plane Array Cooled Detector
Resolution	640×512 / 1280×1024
Spectral Range	Standard: 7.7μm～10.5μm, Optional: 7.7μm～10.8μm or other customized wavebands
Electric Focusing	Optional electric focusing lens (max. 1-inch chip size)
Frame Rate	200Hz (Full-frame, 640×512); 100Hz (Full-frame, 1280×1024)
NETD	≤20mK (Typical Value)
Pixel Pitch	15μm
Dynamic Range	16bit
Integration Time	Minimum 45ns
Aperture	F/4.0 (Standard)
Temperature Measurement	-
Temperature Range	-20℃～200℃ (Other ranges are optional)
Temperature Accuracy	±1℃ or ±1%
Measurement Mode	Supports global maximum/minimum temperature tracking, point, line and polygon temperature measurement
Image Processing	-
Image Enhancement	Adaptive enhancement, manual enhancement, detail enhancement
Color Palette	White Hot, Black Hot, Iron, Rainbow and other palettes

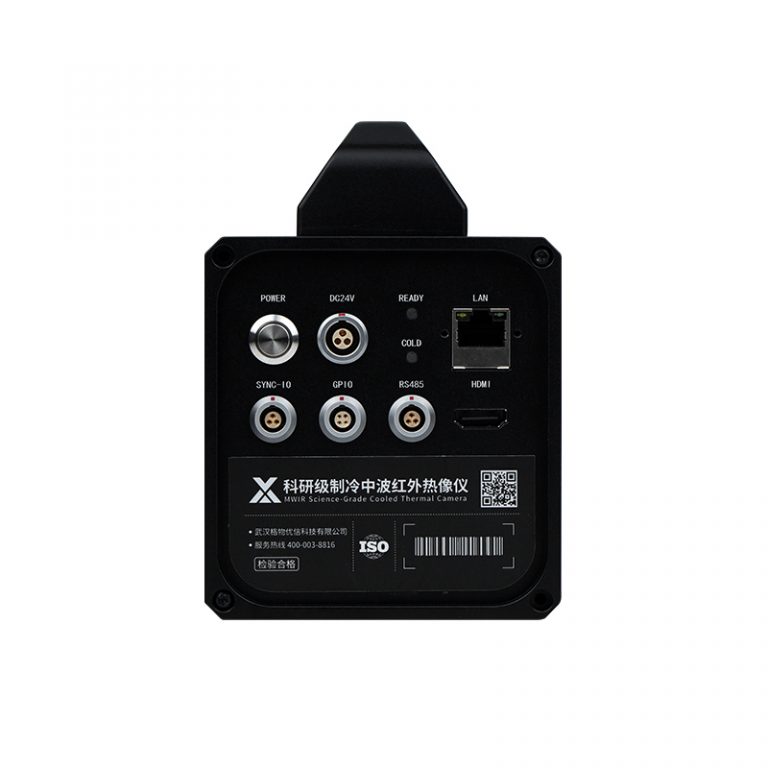

Interface & Output	-
Data Interface	1000M / 2.5Gbps High-speed Gigabit Ethernet
Serial Port	RS485
Video Output	HDMI Type-A
I/O Trigger	SYNC-IN, SYNC-OUT, TTL level
Alarm Output	Relay passive alarm output, NC / COM / NO pins supported
Electrical Specifications	-
Power Supply	DC 24V
Power Consumption	Peak 20W, typical ≤13W at room temperature
Physical & Environmental Parameters	-

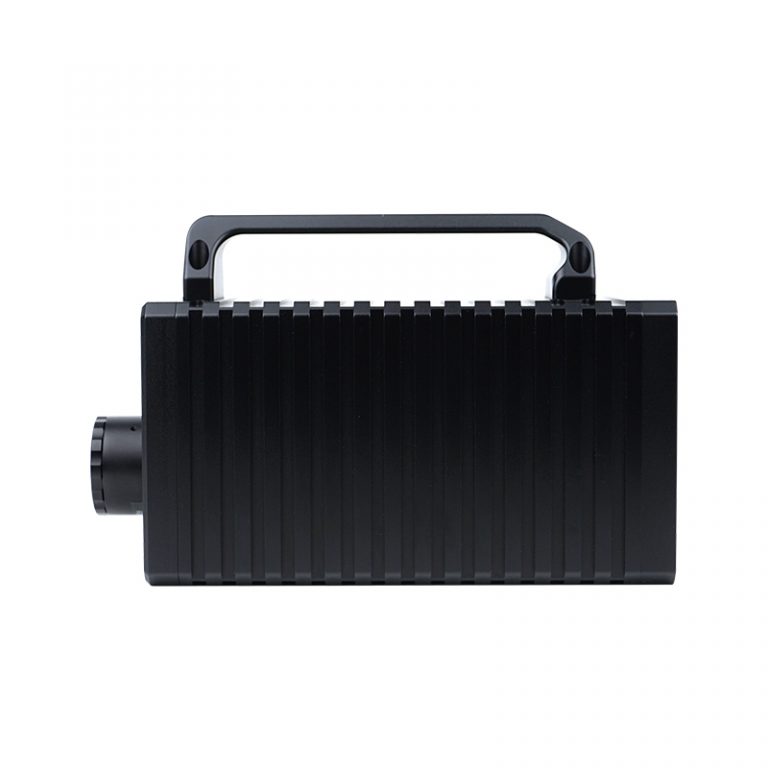

Dimension	210×104×97mm (excluding lens and handle)
Weight	Approx. 2.5kg (with standard lens and 25mm lens)
Protection Class	IP54
Mounting Interface	UNC1/4-20 standard tripod interface, M3 threaded holes
Operating Temperature	-20℃～50℃
Operating Humidity	≤95% RH (Non-condensing)
Shock Resistance	25G (IEC 60068-2-29)
Vibration Resistance	2G (IEC 60068-2-6)
EMC Standard	CE / FCC Compliant
